The seniors’ housing courtyard has two build-ups: paving and a planted area. A single copied sketch is being used for both. The superintendent notices that the layer labels do not match one of the current sections, just as the first overburden materials arrive.

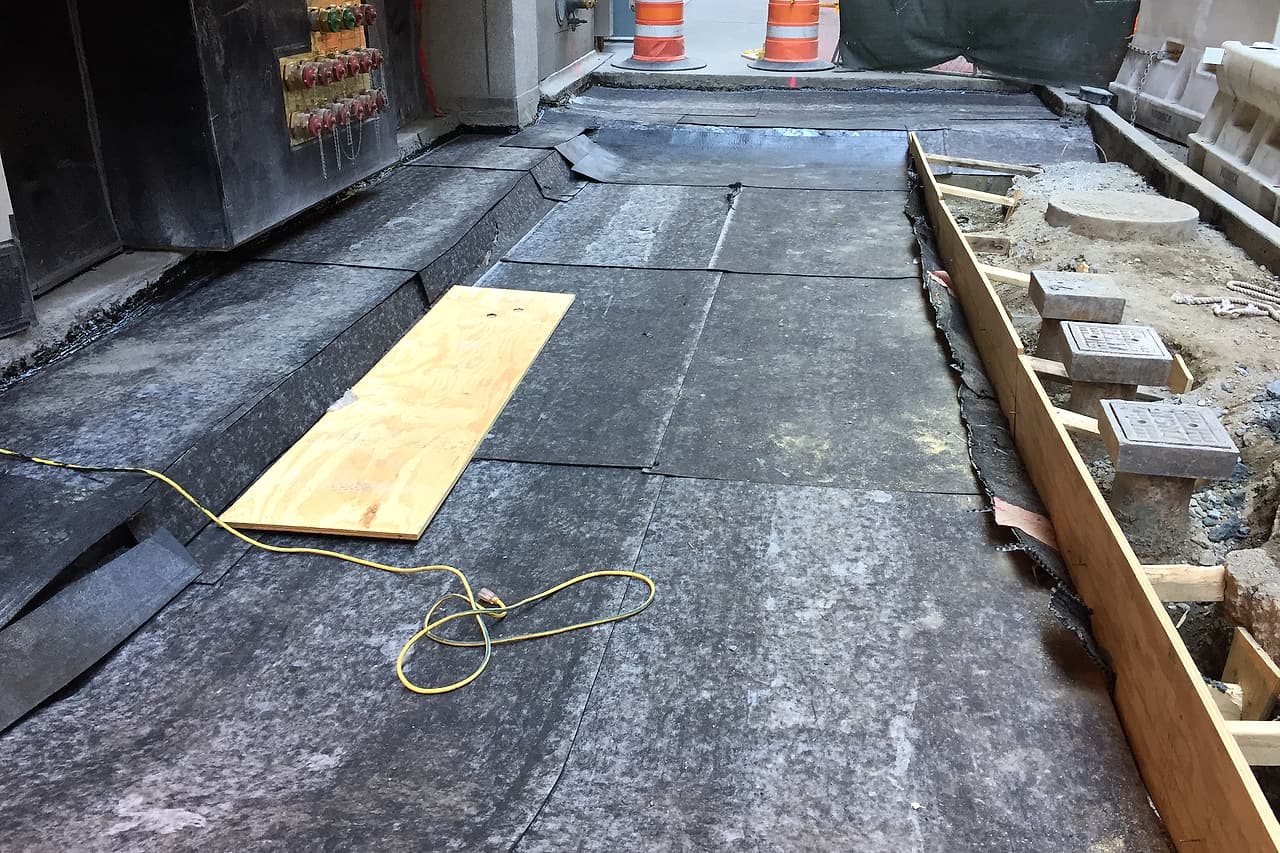

Dark membrane sheets cover an unfinished exterior floor beside a concrete wall, with laps and temporary protection visible.
Photo: MTA Capital Construction Mega Projects on Wikimedia Commons · Waterproofing membrane for the sidewalk restoration in front of the 44th Street ventilation facility. (CM014B, 07-10-2018) (43388523741) · CC BY 2.0 · Cropped, resized, colour adjusted and sharpened.

Read the specified assembly layer by layer and keep different zones distinct. The cited illustrations place protection, thermal control and drainage above waterproofing in their protected arrangements, with filtering and traffic or planted finishes as applicable. They demonstrate functions rather than a universal construction recipe. Your current design determines which layers, materials and interfaces belong in each zone.

Make a layer schedule from the actual sections

  1. Start with each build-up reference. Identify the approved section, detail revisions and zone boundaries. Separate paved, planted and other arrangements. Ask the responsible designer to resolve missing or conflicting information before the crew repeats one convenient sketch across the courtyard.
  2. Name each specified function. Record which component provides water control, protection, insulation, drainage, filtration or the finish, as applicable. Keep the specified component beside its function. Two layers can look alike while having different duties, so appearance alone cannot justify replacing one with another.
  3. Confirm connections and orientation. Identify required edges, laps, transitions and receiving conditions through the actual system details. Check how the water path reaches the drains. Avoid deriving fabric position or lap dimensions from another published illustration that uses a different assembly.
  4. Assign each stage handover. Name the trade providing the layer and the next trade receiving it. Attach the required checks, cover release and protection conditions. A delivery ticket records received stock; it does not establish that a concealed layer was installed in the right place.
  5. Review a representative installed area. Locate the selected build-up trial and retain the required stage evidence. Check the actual component identity and interface against the current detail. Keep different zone types and exceptions visible rather than using one paved trial as approval for the planted build-up.
  6. Preserve the concealed sequence. Retain the layer record, reviews, authorized changes and photographs before overburden closes access. Give following trades the accepted boundary and remaining holds. Update the diagram if an approved change occurs while keeping the earlier instruction and decision history.

Common mistakes

  • Using one build-up for every podium zone.
  • Confusing a component’s appearance with its function.
  • Recording stock delivery as proof of concealed installation.

Checklist

The layer diagram crews can use

  • Zone and approved section reference.
  • Actual components and functions.
  • Specified transitions and water path.
  • Named installers and receiving trades.
  • Representative review with limits.
  • Concealed-stage evidence and change history.

Check your understanding

A filter fabric is in a different position from the approved planted-zone section. Should you correct it from a generic roof illustration?

Show the answer
Resolve the actual discrepancy through the responsible technical process. The project’s approved build-up and component requirements govern the instruction. Keep the affected stage identified until the correct arrangement and review are confirmed.
