Plans and locations

Construction plans with photo pins, revisions and named places

Upload a drawing set as a PDF and each page becomes a sheet, numbered from its title block. Photos, notes, reports, inspections and tickets are pinned to a point on a sheet, and a building’s floors, areas and zones give them a name a crew already uses. When a new issue arrives it becomes a revision of the same sheet, and every pin keeps the place it was made on.

Two workers in hi-vis vests and hard hats, seen from behind, look over an open excavation, an excavator parked on the far side.

In the field / 01

From a PDF to sheets with pins

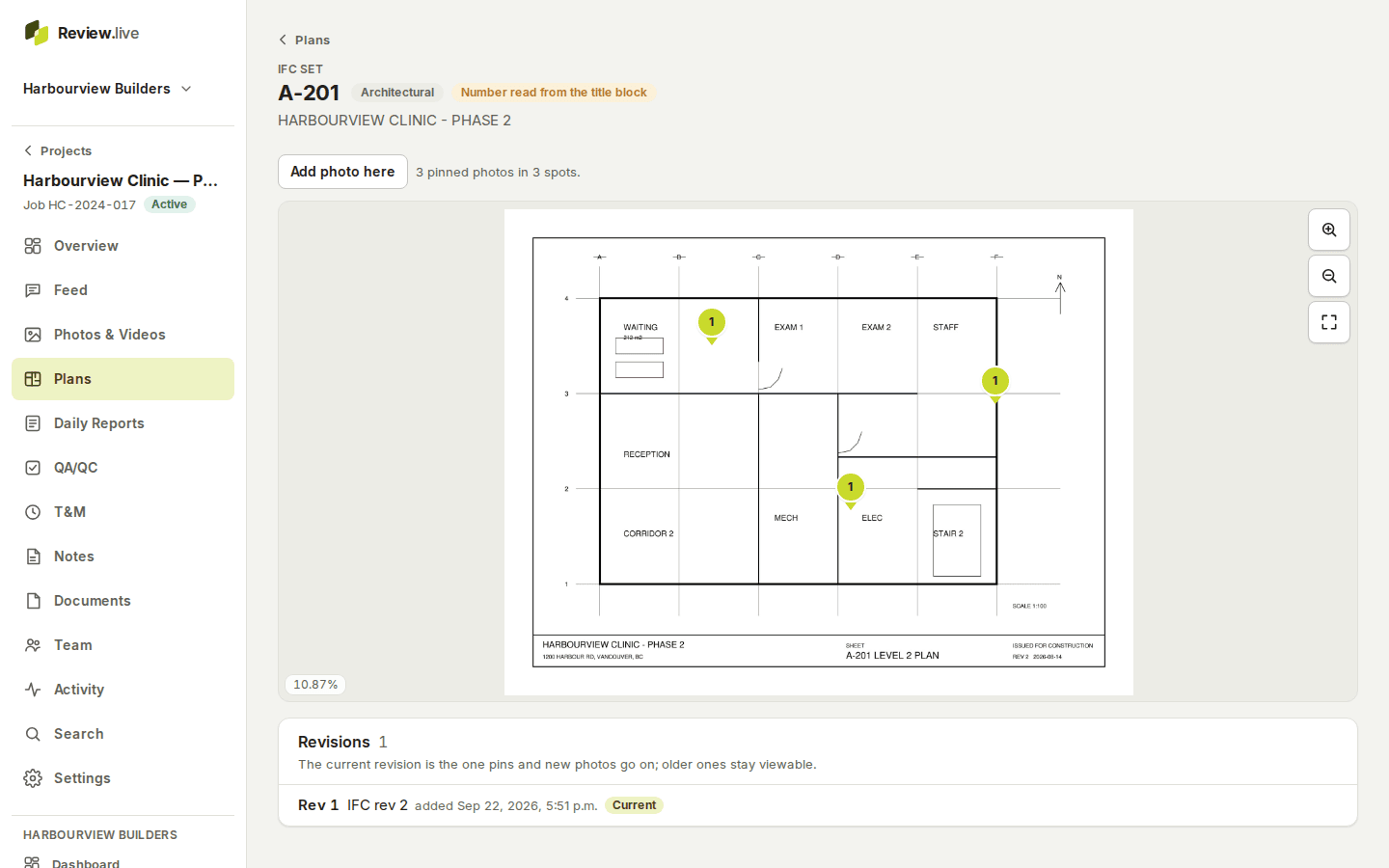

A plan set groups drawings by discipline. The PDF is uploaded through the same resumable path as a video, inspected for its page count and text, and each page is rendered at three sizes; the sheet number is read from the title block and stays flagged until an admin confirms it. Admins correct a number, title or level, re-file a page under another sheet, and choose which revision is current.

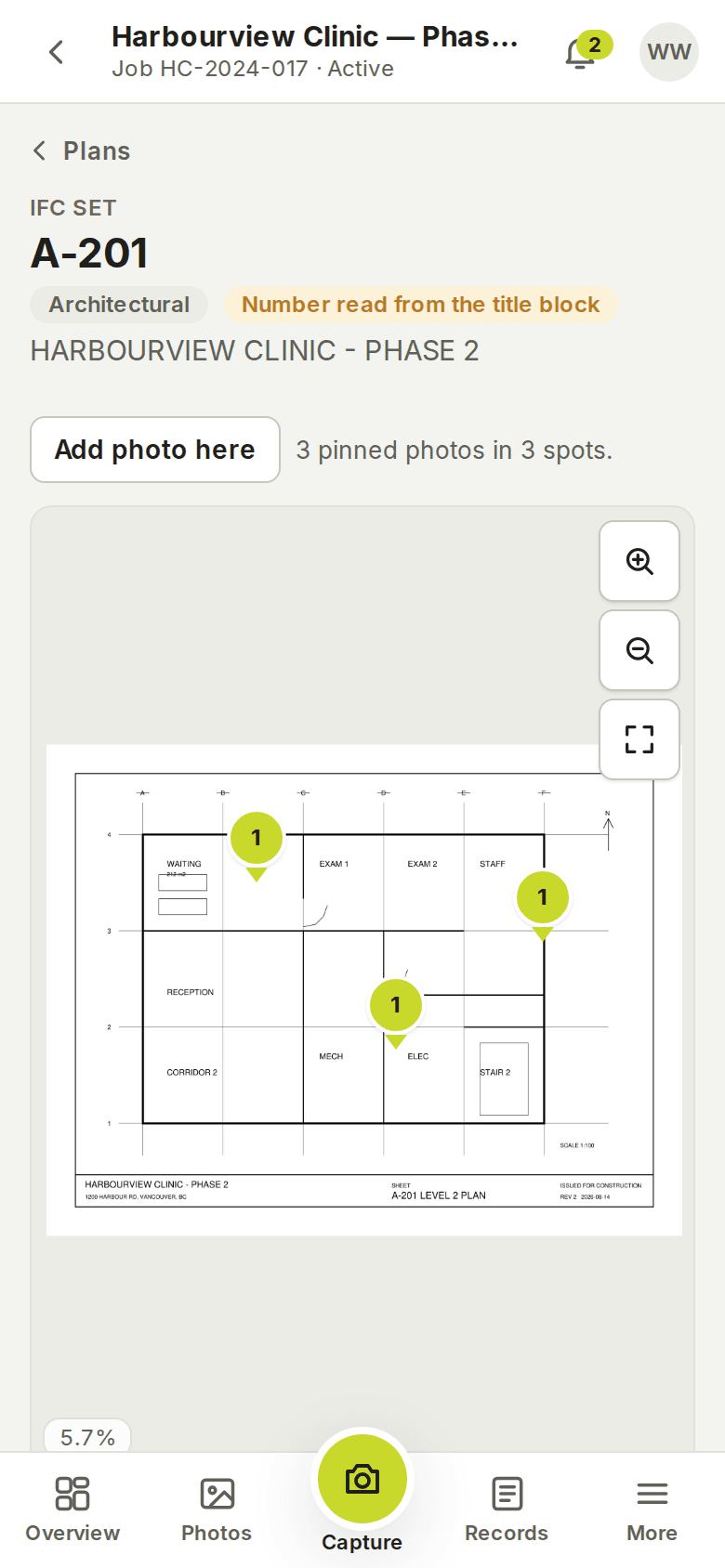

The viewer pans and zooms with the pins staying where they belong; nearby pins group with a count. A pin made on revision 1 is shown on revision 2 with a note saying so — it is never moved for you.

Review.liveIllustration

Put it on the plan

A drawing gives every photo a place

A-201 · Example floor plan3 photo locations

Drawing revisions

Keep the sheet's revision history with the project.

Example project · Demonstration content
Illustrative workflow. Your project's records and layout will vary.

In the field / 02

Buildings, floors, areas and zones

Project locations are a small tree a manager sets up once — nothing is mandatory — and every record can carry the most specific one. The capture screen shows where the next photos will belong, so the question is answered before the first photo rather than after the hundredth.

A capture session takes a location, a sheet and a pin, and places every photo that follows without another tap; it expires after twelve hours, and one person has one active session per project.

Review.liveIllustration

Put it on the plan

A drawing gives every photo a place

A-201 · Example floor plan3 photo locations

Drawing revisions

Keep the sheet's revision history with the project.

Example project · Demonstration content
Illustrative workflow. Your project's records and layout will vary.

In the field / 03

The map, the geofence, the address

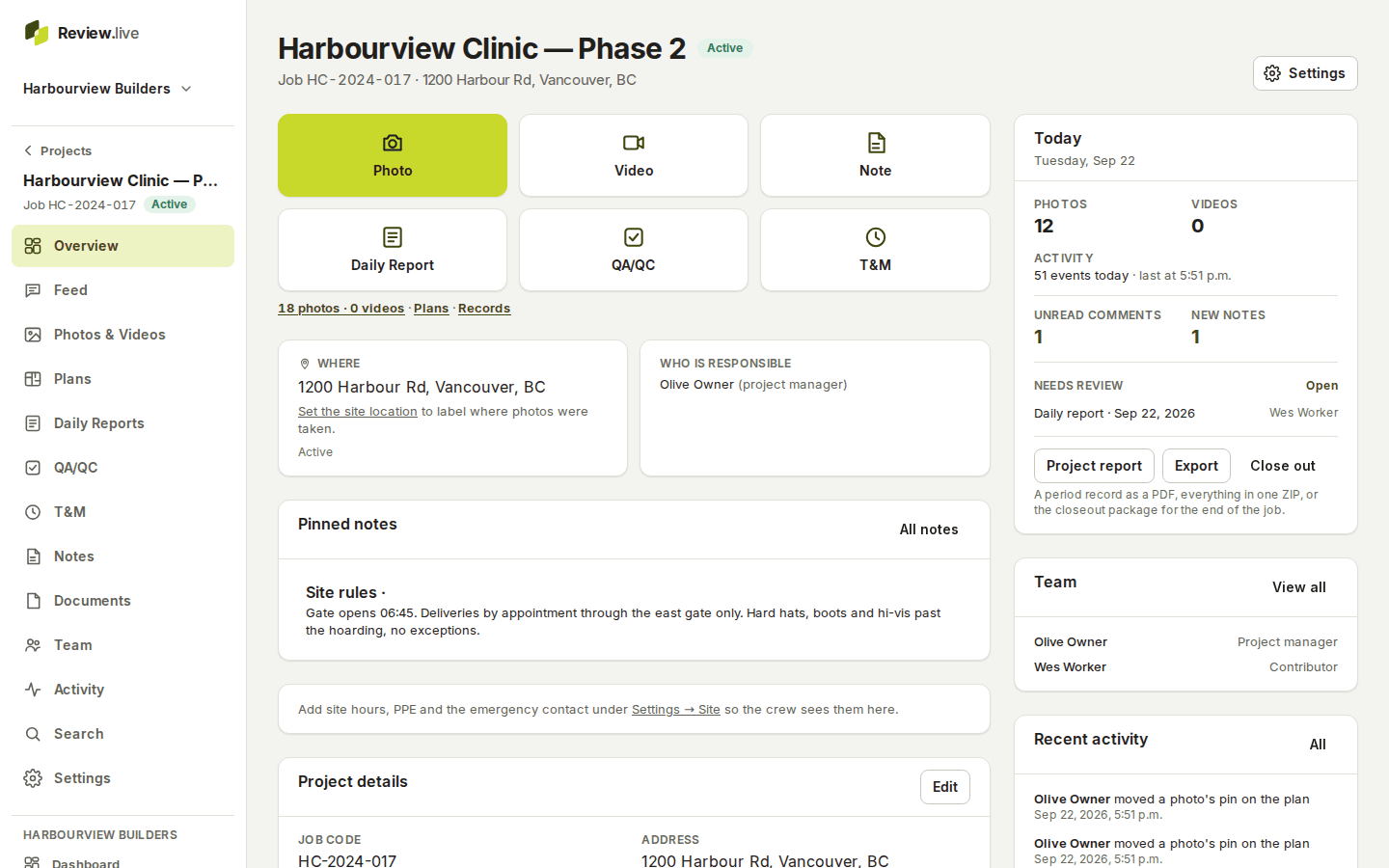

A project has an address, coordinates and a geofence radius. The map view shows geotagged photos in clusters over the project’s centre and its circle, and a photo’s page says whether its fix fell inside — with the benefit of the doubt for the fix’s accuracy. Without a map provider configured the view degrades to a located list with open-in-maps links.

Review.liveIllustration

Start with the job

The tools you need, close at hand

Take photo
Add note
Fill form

Continue your work

Return to a saved draft in this project.

Stay up to date

Find the team's recent photos, notes and records.

Example project · Demonstration content
Illustrative workflow. Your project's records and layout will vary.

What the plan model holds

  • Plan sets by discipline; uploads as immutable PDFs with their processing state
  • Sheets with number, title, discipline and level, and whether the number was detected or confirmed
  • Revisions, append-only, each rendered at full, preview and thumbnail sizes; the current one
  • Placements: any record's sheet, revision, x/y as fractions of the page, and its most specific location
  • Locations: buildings, floors, areas and zones, with an optional parent
  • Capture sessions: location, sheet, pin, starting GPS fix, expiry
  • The project's address, coordinates and geofence radius

Good to know

The viewer shows drawings; it does not measure, mark up, compare revisions visually or read CAD files — the input is a PDF. Sheet numbers are detected from text in the title block and can be wrong until confirmed. There is no BIM, no model viewer and no georeferencing of sheets to the map. Photos pinned here come from the capture path.
